LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Product Categories
Yueqing Kampa Electric Co., Ltd.
Contact Now

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Model Number : LJ8A3-1.5-Z/AY

Type : Inductive Proximity Sensor

Place of Origin : Zhejiang, China

Brand Name : Kampa

Usage : Position Sensor

Theory : Inductance Sensor

Output : Switching Transducer

Description : Proximity Sensor

Detection Objects : Metal

Sensing Surface : Flush

Size : M8

Output Type : PNP NC

Detection Distance : 1.5mm

Material : PBT and metal

With Cable : 2m

Application : Industrial Automatic

Packaging Details : 1~10pcs in box and batch in carton

Port : None

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $1.50 - $2.20/Pieces

Contact Now

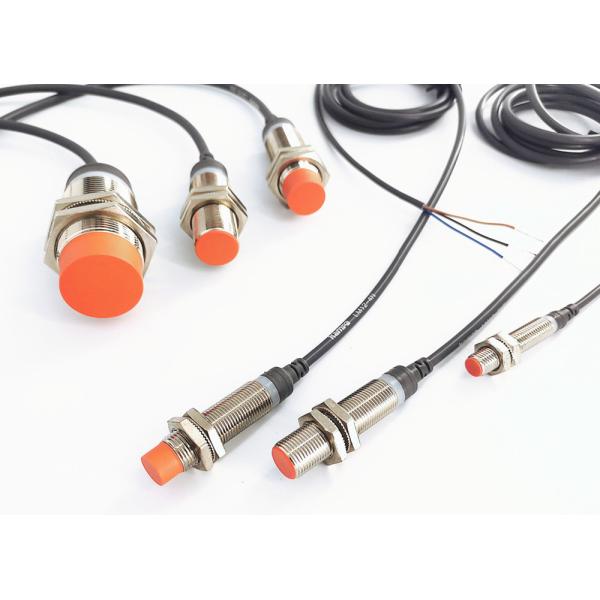

Product Show

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Product Description
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch
DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
1.Model Number Structure
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
2.Technical Specification
Model: M8
Output Form: DC NPN NO LJ8A3-1.5-Z/BX
NC LJ8A3-1.5-Z/AX
NO+NC LJ8A3-1.5-Z/CX
PNP NO LJ8A3-1.5-Z/BY
NC LJ8A3-1.5-Z/AY
NO+AC LJ8A3-1.5-Z/CY
2-wire NO LJ8A3-1.5-Z/EZ
NC LJ8A3-1.5-Z/DZ
AC 2-wire NO LJ8A3-1.5-J/EZ
NC LJ8A3-1.5-J/DZ

Sensing Surface:

Standard Detecting Object:

Detection Distance:

Frequency:

Non-flush Type

12*12*1mm metal

2mm±10%

1000Hz

 Flush Type

8*8*1mm metal

1.5mm±10%

1500Hz

Frequency:

 AC: 20Hz
Detection Object: Magnetic metal
Voltage Supply: 10~30VDC, 90~250VAC
Static Operating Current: <10mA
Full-load Current: DC: ≤200mA, AC: ≤300mA
Output Indication: green LED,360°visible
Power Protection:

DC:reverse protection,short-circuit protection

AC:surge protection
Withstand Voltage:

1500V/AC 50/60Hz 1min

Ambient Temperature:

Storage Temperature:

Ambient Humidity:

-20 ~ +70℃

-30 ~ +80℃

35~95%

Insulation Resistance:

≥50MΩ

IP Grade:

IP67

Material:

brass nickel-plated case,

PBT detection surface,

PVC cable
3.Features
—— Good quality, good sensing performance, anti-interference and stable output.
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
—— LED (green light) indicator to show the output, 360° visible, clear and intuitive.
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
—— Two types available, different sensing distance: non-flush type(2mm), flush type(1.5mm).
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
4.Dimension
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

Packaging & Shipping
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
Company Information

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
